1. Introduction to the PyMPA package

This document is designed to give you an overview of the capabilities and implementation of the PyMPA Python package.

1.1. Motivation

PyMPA is designed to compute detections of earthquakes, or any seismic signal (explosions or low frequency tremors) using more advanced routines than standard fast amplitude-ratio STA/LTA methods.

The technique allows to augment seismic catalogs decreasing the completeness magnitude and is particularly useful in detecting seismicity below the background noise level and early aftershocks of a strong mainshock.

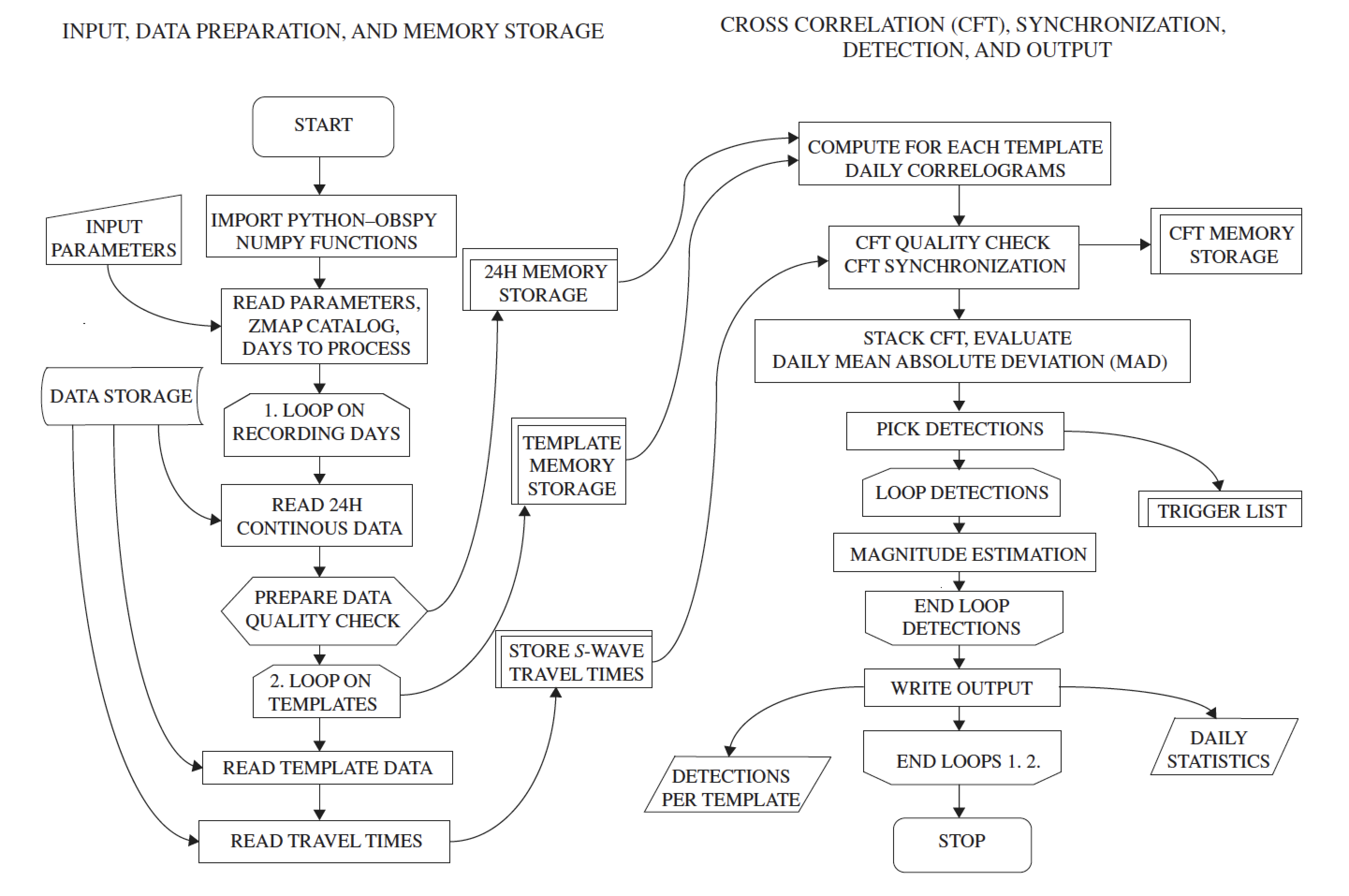

The basic algorithm of the PyMPA is the same as that of an MFT search for earthquakes that resemble well-located events, termed templates (e.g., Shelly et al., 2007; Peng and Zhao, 2009; Yang et al., 2009; Kato et al., 2012; Zhang and Wen, 2015). The algorithm, which exploits ObsPy routines (Krischer et al., 2015), is versatile and supports most commonly used seismic data and earthquake catalog formats. A PyMPA flowchart is shown here below:

PyMPA is an open source project for the development of software for the detection and analysis of earthquakes self-similar to earthquakes. In addition to PyMPA, we develop other tools external to the main code to manage the input–output preparation and validation for (1) downloading data from Observatories and Research Facilities for European Seismology–European Integrated Data Archive (ORFEUS-EIDA) servers, (2) evaluating data quality, (3) selecting earthquakes as templates from a reference catalog, (4) trimming and filtering them from continuous waveforms, (5) avoiding redundant detections in the output, and (6) validating new events. This repository will continue to grow and develop and any modification is reported in the github repository.

1.2. Supported environments

Linux, OSX and Windows environments running Python 2.7 and 3.x. We will stop support for Python 2.7 in a forthcoming release.

1.3. Functionality

Within input you will find the routines to generate templates, (create_template) select good templates (template_check), calculate travel times (calculate_ttimes), compute cross-channel correlations from these templates (pympa), process_detections (process_detections), a visual verification (verify_detection)

1.4. Running tests

For running tests examples are provided in the github subdirectories, tests are recalled when modifications are performed to the codes and a TRAVIS CI report is released.

You can also run these tests yourself locally to ensure that everything runs as you would expect in your environment.

Although every effort has been made to ensure these tests run smoothly on all supported environments (using the ci bots), if you do find any issues, please let us know on the github page.

1.5. References

Shelly, D. R., G. C. Beroza, and S. Ide (2007). Non-volcanic tremor and low frequency earthquake swarms, Nature 446, 305–307.

Peng, Z., and P. Zhao (2009). Migration of early aftershocks following the 2004 Parkfield earthquake, Nature Geosci. 2, 877–881.

Yang, H., L. Zhu, and R. Chu (2009). Fault-plane determination of the 18 April 2008 Mount Carmel, Illinois, earthquake by detecting and relocating aftershocks, Bull. Seismol. Soc. Am. 99, 3413–3420.

Kato, A., K. Obara, T. Igarashi, H. Tsuruoka, S. Nakagawa, and N. Hirata (2012). Propagation of slow slip leading up to the 2011 Mw 9.0 Tohoku-Oki earthquake, Science 335, 705–708.

Zhang, M., and L. Wen (2015). An effective method for small event detection: Match and locate (M&L), Geophys. J. Int. 200, 1523–1537.

Krischer, L., T. Megies, R. Barsch, M. Beyreuther, T. Lecocq, C. Caudron, and J. Wassermann (2015). ObsPy: A bridge for seismology into the scientific Python ecosystem, Comput. Sci. Discov. 8, no. 1, 014003, doi: 10.1088/1749-4699/8/1/014003.
